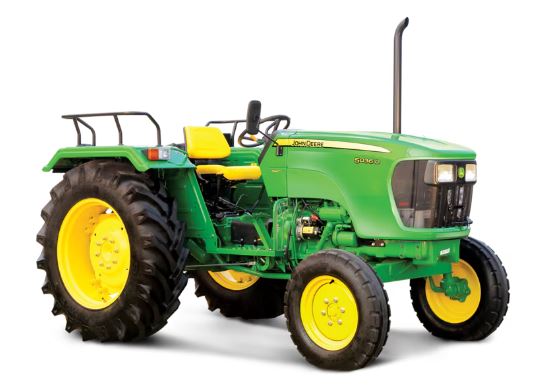

John Deere 5036D
John Deere 5036D EMI Calculator
₹
%
Loan EMI
Total Interest
Total Payment
(Principal + Interest)
John Deere 5036D Key Features
36 HP
8 Forward + 4 Reverse, Collarshift Gear Box
Oil immersed disc brakes
5000 Hours/ 5 Years Warranty
Single Clutch
Power Steering
1600 Kg Lifting Capacity
2 WD Wheel drive
John Deere 5036D Specifications
Engine
| Type | John Deere 3029D, 36 HP (26.8 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
| Air Filter | Dry Type, Dual element |
Transmission
| Clutch | Single |
| Gear box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 3.13 – 34.18 kmph Reverse 4.10 -14.87 kmph |
Brakes
| Brakes | Oil immersed disc brakes |
Hydraulics
| Maximum Lifting capacity | 1600 kgf |
| 3 Point Linkage | Category- II Automatic depth and draft control (ADDC) |
Steering
| Type | Power |
Power Take off
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
Wheels and Tyres
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
| Rear | 12.4 x 28 (0.31 x 0.71 m), 12 PR 13.6 x 28 (0.34 x 0.71 m), 12 PR (Optional) |
Fuel Tank
| Capacity | 60 L |
Electrical System
| Electrical System | 88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
Dimensions and Weight
| Total weight | 1760 kg |
| Wheel base | 1970mm |
| Overall length | 3400 mm |
| Overall width | 1780 mm |
| Ground clearance | 0390 mm |
| Turning radius with Brakes | 2900 mm |
FAQs
Is John Deere 5036D a 2WD Tractor?
Yes, John Deere 5036 tractor comes in a 2WD option
What are John Deere 5036D features?
John Deere 5036D has the following features :
- Dry Type Air Filter with Air Restriction Sensor
- Power Steering
- Side Shift Gear Levers
- Collar Shift Gear Box
- Oil Immersed Disc Brake
- Lifting Capacity
What is the HP of John Deere 5036D?
The horsepower of the John Deere 5036D is 36HP.
John Deere 5036D tractor price ranges from Rs.4.80 lakhs to Rs.29 lakhs.
