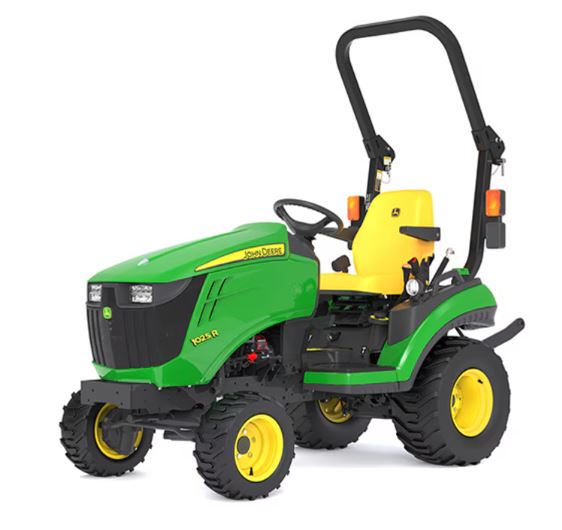

John Deere 1025R
John Deere 1025R EMI Calculator
₹
%
Loan EMI
Total Interest
Total Payment
(Principal + Interest)
John Deere 1025R Key Features
23.9 HP
Spur gear
Wet disc (left-hand pedal) brakes
6-year/2,000-hour limited powertrain warranty
Clutch Wet disk
Power Steering
344 kg, 758 lb Lifting Capacity
4WD Wheel drive
John Deere 1025R Specifications
Key Specs
| Engine Power (Gross) | SAE J1995 rated power: 17.8 kW (23.9 hp / 24.2 PS) at 3200 rpm |
| Power Take-Off (PTO) Power | 12.8 kW (17.2 hp) |
| Steering Hydraulics | 13.2 L/min (3.5 gpm) |
| Implement Hydraulics | 13.2 L/min (3.5 gpm) |
| Hitch Type | Limited Category 1 |
| Lift Capacity, 24-in. Behind Link Arms | 344 kg (758 lb) |
| Standard Transmission; Forward/Reverse | Hydrostatic – Two Range |
| Cruise Control | Standard |
| Approximate Shipping Weight | Open station: 706 kg (1556 lb) Cab: 906 kg (1996 lb) |
| Wheelbase | 1450 mm (57.1 in.) |
Engine
| Manufacturer | Yanmar® |
| Engine Model | 3TNV80F-NCJT |
| Engine Power (Gross) | SAE J1995 rated power: 17.8 kW (23.9 hp / 24.2 PS) at 3200 rpm |
| Power Take-Off (PTO) Power | 12.8 kW (17.2 hp) |
| Rated Engine Speed | 3200 rpm |
| Type | Diesel |
| Injection Pump Type | Indirect injection |
| Aspiration | Natural |
| Emissions Compliance | Final Tier 4 |
| Cylinders / Displacement | Three cylinders: 1.267 L (77.3 cu in.) |
| Number of Cylinders | Three |
| Cylinder Liners | Cast-in-block |
| Bore and Stroke | 80 x 84 mm (3.15 x 3.31 in.) |
| Compression Ratio | 23.1:1 |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Air Cleaner | Dual element with mechanical restriction indicator |
| Engine Torque at Rated Speed | 53.1 Nm (39.2 lb-ft) |
| Fuel Tank Capacity | 24 L (6.3 U.S. gal.) |
Transmission
| Standard Transmission; Forward/Reverse | Hydrostatic – Two Range |
| Left-hand Reverser | No |
| Final Drive | Spur gear |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power |
| Axle Capacity (Front) | 612 kg (1349 lb) |
| Axle Capacity (Rear) | 715 kg (1576 lb) |
| Creeper | No |
| Cruise Control | Standard |
| Differential Lock | Yes |
Hydraulics
| Type | Open center |
| Pump Rated Output (Steering) | 13.2 L/min (3.5 gpm) |
| Pump Rated Output (Implement) | 13.2 L/min (3.5 gpm) |
| Pump Rated Output (Total) | 24 L/min (6.3 gpm) |
| Pump Type | Single gear |
| Maximum Operating Pressure | 138 bar (2000 psi) |
| Draft Control Sensing | Position control |
| Remote Control Valves Available | Three |
Electrical
| Battery Size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter Size | 1.2 kW (1.6 hp) |
Fuel Tank
| Type | Indirect injection |
Power take-off (PTO)
| Standard PTO Speeds | Rear: 540 rpm Mid: 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for Mid and Rear PTO) | Wet disk |
3-point hitch
| Type | Limited Category 1 |
| Lift Capacity, 24-in. Behind Link Arms | 344 kg (758 lb) |
Fluid capacities
| Crankcase with Filter | 2.7 L (2.9 gal) |
| Transmission and Hydraulic System | 12.3 L (3.2 gal) |
Final drive
| Type | Spur gear |
| Differential Lock | Yes |
Operator station
| Rollover Protective Structure Type | Foldable (Yes) |
| Platform – Flat/Straddle | One-piece semi-flat |
| Gear Shift Location – Console/Floor | Left-hand side |
Dimensions
| Wheelbase | 1450 mm (57.1 in.) |
| Front Axle Clearance | 195 mm (7.7 in.) |
| Turning Radius Without Brakes | Outside front tire: 2.51 m (8.2 ft) |
| Limited Slip Differential | No |
| Approximate Shipping Weight | Open station: 706 kg (1556 lb) Cab: 906 kg (1996 lb) |
Tires
| Front Tire (R3 Turf) | 18×8.50-10 |
| Front Tire (R3 Turf Radial) | 18×8.50-10 |
| Front Tire (R4) | 18×8.5-10 |
| Rear Tire (R3 Turf) | 26×12-12 |
| Rear Tire (R4) | 26×12-12 |
| Front Tread Range | 931 mm (36.7 in.) |
| Rear Tread Spacing | 895 mm (35.2 in.) |
Miscellaneous
| Toolbox | Yes |
FAQs
How often does the 1025R require maintenance?
The tractor has specific service intervals:
- Fuel filters: Replace every 400 hours and annually
- Oil filter change: Every 200 hours
- Transmission filter: Every 50/200 hours
- Air filters: Check every 10 hours, replace every 400 hours
How does the 1025R compare to the 1023E model?
The 1025R offers:
- 25 horsepower vs. 23 horsepower on the 1023E
- Cruise control (standard)
- Position control for three-point implements
- More factory options like a backhoe and premium cab
What kind of work can the 1025R handle?
The tractor is excellent for Leveling, Loading, Digging, Trenching, Landscaping, and Property development tasks.
What warranty comes with the 1025R ?
John Deere offers a 6-year/2,000-hour limited powertrain warranty with this tractor.
