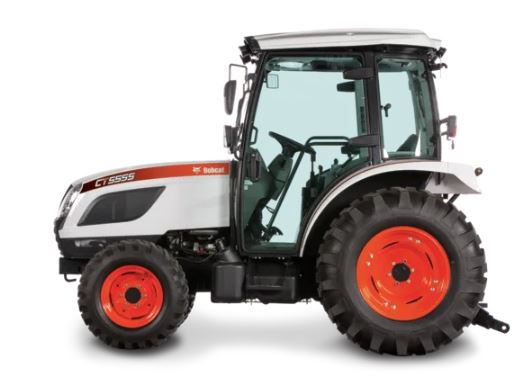

Bobcat CT5555
Bobcat CT5555 Key Features
3FT-TH4-U Engine Model
55 Horsepower
Infinite, 3 Range Hydrostatic Transmission
Wet Multi Disc Brake
3,177 lb Lift Capacity
Bobcat CT5555 Specs
Key Specifications
| Horsepower | 55 hp |
| Lift Capacity at 24″ behind Lift Point | 3,177 lb |
| PTO HP | 43.1 hp |
| Transmission Type | Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.) |
| Width | 74.2 in |
| Turning Radius | 9′ 9″ |
| Wheelbase | 6′ 3″ |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Horsepower | 55 hp |
| Displacement | 111 in³ |
| Number of Cylinders | 3 |
| Gross HP | 55 hp |
| Engine Model | 3FT-TH4-U |
Performance
| Operating Weight | 4,685 lb |
| Travel Speed | 17.5 mph |
| Travel Speed – Reverse | 17.5 mph |
| 3-Point Hitch | Category 2 |
| 3-pt Lift Control Type | Position with Draft Control |
| Lift Capacity at 24″ behind Lift Point | 3,177 lb |
| Rear PTO System | Independent |
| Rear PTO – RPM | 540 RPM |
| PTO HP | 43.1 hp |
| Mid PTO – RPM | 2103 RPM |
Capacities
| Fuel Tank | 14.8 gal |
Hydraulic System
| Implement Hydraulic Flow | 9.6 gal/min |
| Total Hydraulic Flow | 17.8 gal/min |
| Steering Hydraulic Flow | 8.2 gal/min |
Drive System
| Brake Type | Wet Multi Disc |
| Transmission Type | Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.) |
Dimension
| Length | 139.6 in |
| Width | 74.2 in |
| Height | 94.2 in |
| Ground Clearance | 13 in |
| Turning Radius | 9′ 9″ |
| Wheelbase | 6′ 3″ |
| Front Tire Size | Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15) |
| Rear Tire Size | Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20) |
Loader Attachment
| Loader Lift Height | 9′ 1″ |
| Lift Capacity at Bucket Pivot | 2,346 lb |
| Bucket Width | 6′ 0″ |
FAQs
What is the horsepower of the Bobcat CT5550?
The Bobcat CT5550 is a 55 hp.
What is the lift capacity of the Bobcat CT5550 tractor?
The Bobcat CT5550 front-end loader has a lift capacity of approximately 3,177 lbs.
How much does a Bobcat CT5550 weigh?
The Bobcat CT5550 has an operating weight of 4,685 lbs.
What is the fuel tank capacity of Bobcat CT5550?
The CT5550 has a 14.8-gallon fuel tank.
What type of hydraulic system does Bobcat CT5550 have?
- Implement Hydraulic Flow: 9.6 gal/min
- Total Hydraulic Flow: 17.8 gal/min
- Steering Hydraulic Flow: 8.2 gal/min
