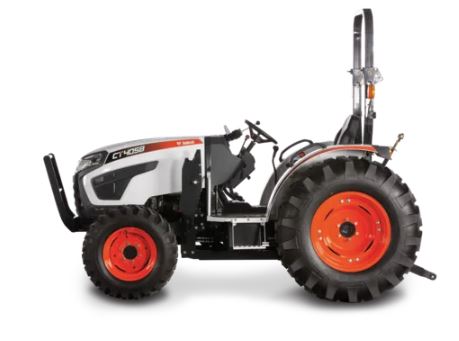

Bobcat CT4058
Bobcat CT4058 Key Features
3-Range HST Engine Model
57.7 Horsepower
3-Range HST Hydrostatic Transmission
Hydraulic Position Control System Brake
2,716 lb Lift Capacity
Bobcat CT4058 Specs
Key Specifications
| Horsepower | 57.7 hp |
| Lift Capacity at 24″ behind Lift Point | 2,716 lb |
| PTO HP | 45.1 hp |
| Transmission Type | 3-Range HST |
| Width | 69.8 in |
| Turning Radius | 8′ 7″ |
| Wheelbase | 5′ 11″ |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Horsepower | 57.7 hp |
| Displacement | 111 in³ |
| Number of Cylinders | 3 |
| Gross HP | 57.7 hp |
| Engine Model | 3FT-THL4-U |
Performance
| Operating Weight | 3,745 lb |
| Travel Speed | 18.5 mph |
| Travel Speed – Reverse | 12.5 mph |
| 3-Point Hitch | Category 1 |
| 3-pt Lift Control Type | Hydraulic Position Control System |
| Lift Capacity at 24″ behind Lift Point | 2,716 lb |
| Rear PTO System | Independent |
| Rear PTO – RPM | 540 |
| PTO HP | 45.1 hp |
| Mid PTO – RPM | 2,119 |
Capacities
| Fuel Tank | 11.9 gal |
Hydraulic System
| Implement Hydraulic Flow | 9.6 |
| Total Hydraulic Flow | 16.5 |
| Steering Hydraulic Flow | 6.9 |
Drive System
| Brake Type | Hydraulic Position Control System |
| Transmission Type | 3-Range HST |
Dimension
| Length | 125.5 in |
| Width | 69.8 in |
| Height | 97.4 in |
| Ground Clearance | 15.3 in |
| Turning Radius | 8′ 7″ |
| Wheelbase | 5′ 11″ |
| Front Tire Size | Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15) |
| Rear Tire Size | Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20) |
Loader Attachment
| Loader Lift Height | 8′ 8″ |
| Lift Capacity at Bucket Pivot | 1,795 lb |
| Bucket Width | 5′ 6″ |
FAQs
What is the price of a Bobcat CT4058 ?
The CT4058 price varies depending on the configuration but typically ranges from $38,202 USD
What is the lift capacity of the Bobcat CT4058 ?
The CT4058 tractor offers a robust 2,716-lb lift capacity at 24 inches behind the lift point, making it suitable for various heavy-duty tasks.
What is the fuel tank capacity of Bobcat CT4058 ?
The CT4058 tractor has an 11.9-gallon fuel tank, providing extended operation time.
What is the weight of the Bobcat CT4058 ?
The Bobcat CT4058 tractor weighs 3,745 lbs. With a front-end loader, the total weight increases slightly.
What warranty comes with the Bobcat CT4058 ?
The Bobcat CT4058 includes a 6-year or 2,000-hour powertrain warranty.
What is the horsepower of the CT4058?
The Bobcat CT4058 delivers 57.7 horsepower, making it the most powerful tractor in the Bobcat 4000 platform series.
What are the key specifications of the Bobcat CT4058 ?
- Height: 97.4 inches
- Length: 125.5 inches
- Width: 70 inches
- Ground Clearance: 15.3 inches
- Operating Weight: 3,745 lbs
What is the travel speed of the Bobcat CT4058?
The Bobcat CT4058 has the following travel speeds: Forward Travel Speed is 18.5 mph, and Reverse Travel Speed is 12.5 mph.
