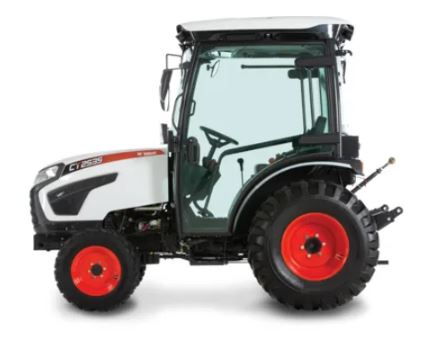

Bobcat CT2535
Bobcat CT2535 Key Features
3F-TM(H)4 Engine Model
34.9 Horsepower
Infinite, 3 Range Hydrostatic Transmission
Wet Multi Disc Brake
1,631 lb Lift Capacity
Bobcat CT2535 Specs
Key Specifications
| Horsepower | 34.9 hp |
| Lift Capacity at 24″ behind Lift Point | 1,631 lb |
| PTO HP | 29.4 hp |
| Transmission Type | Infinite, 3 Range Hydrostatic |
| Width | 63.4 in |
| Turning Radius | 8′ 9″ |
| Wheelbase | 5′ 5″ |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Horsepower | 34.9 hp |
| Displacement | 111 in³ |
| Number of Cylinders | 3 |
| Gross HP | 34.9 hp |
| Engine Model | 3F-TM(H)4 |
Performance
| Operating Weight | 3,585 lb |
| Travel Speed | 14 mph |
| Travel Speed – Reverse | 10 mph |
| 3-Point Hitch | Category 1 |
| 3-pt Lift Control Type | Hydraulic Position Control System |
| Lift Capacity at 24″ behind Lift Point | 1,631 lb |
| Rear PTO System | Independent |
| Rear PTO – RPM | 540 |
| PTO HP | 29.4 hp |
| Mid PTO – RPM | 1,988 |
Capacities
| Fuel Tank | 9 gal |
Hydraulic System
| Implement Hydraulic Flow | 6.9 |
| Total Hydraulic Flow | 11.4 |
| Steering Hydraulic Flow | 4.5 |
Drive System
| Brake Type | Wet Multi Disc |
| Transmission Type | Infinite, 3 Range Hydrostatic |
Dimension
| Length | 120.9 in |
| Width | 63.4 in |
| Height | 91 in |
| Ground Clearance | 12.3 in |
| Turning Radius | 8′ 9″ |
| Wheelbase | 5′ 5″ |
| Front Tire Size | Front Industrial (AG, Turf) 25X8.5-14 (7-16, 27X8.5-15) |
| Rear Tire Size | Rear Industrial (AG, Turf) 15-19.5 (11.2-24, 41X14-20) |
Loader Attachment
| Loader Lift Height | 8′ 4″ |
| Lift Capacity at Bucket Pivot | 1,389 lb |
| Bucket Width | 5′ 0″ |
FAQs
Is the Bobcat CT2535 suitable for heavy-duty tasks?
Yes, it is designed for demanding tasks such as towing and lifting heavy loads, making it suitable for various farming and landscaping applications.
What kind of PTO (Power Take-Off) does the CT2535 feature?
The Bobcat CT2535 tractor has an independent rear PTO system, operating at 540 RPM with a PTO horsepower of 29.4 hp.
What type of hydraulic system does the Bobcat CT2535 have?
It has a hydraulic position control system with a total hydraulic flow of 11.4 gallons per minute.
What is the travel speed of the CT2535?
The maximum forward travel speed is 14 mph, while the reverse speed is 10 mph.
What is the fuel tank capacity of the Bobcat CT2535?
Bobcat CT2535 fuel tank capacity is 9 gallons.
Does the CT2535 come with a cab?
Yes, an enclosed cab that includes heating and air conditioning is available.
What type of transmission does the Bobcat CT2535 use?
Bobcat CT2535 features an infinite, 3-range hydrostatic transmission, allowing smooth operation.
What is the lift capacity of the CT2535 at 24 inches behind the lift point?
The lift capacity at 24 inches behind the lift point is 1,631 lbs.
What is the horsepower of the Bobcat CT2535 Compact Tractor?
The Bobcat CT2535 has a horsepower of 34.9 hp.
