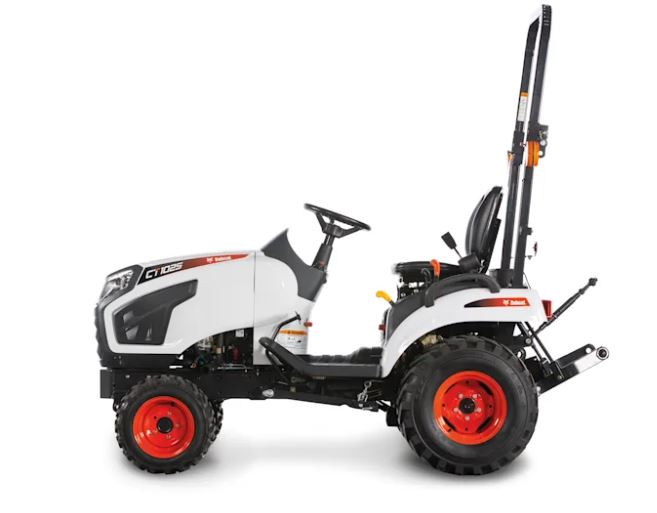

Bobcat CT1025
Bobcat CT1021 Key Features
3C100LFH-U1 Engine Model
24.5 Horsepower
Infinite, 2 Range Hydrostatic Transmission
Wet Multi Disc Brake
700 lb Lift Capacity
Bobcat CT1025 Specs
Key Specifications
Horsepower | 24.5 hp |
Lift Capacity at 24″ behind Lift Point | 700 lb |
PTO HP | 18.8 hp |
Transmission Type | Infinite, 2 Range Hydrostatic |
Width | 45.7 in |
Turning Radius | 8′ 3″ |
Wheelbase | 4′ 7″ |
Engine
Emissions Tier (EPA) | Tier 4 |
Horsepower | 24.5 hp |
Displacement | 61 in³ |
Number of Cylinders | 3 |
Gross HP | 24.5 hp |
Engine Model | 3C100LFH-U1 |
Performance
Operating Weight | 1,521 lb |
Travel Speed | 11 mph |
Travel Speed – Reverse | 7.5 mph |
3-Point Hitch | Category 1 |
3-pt Lift Control Type | Hydraulic Position Control System |
Lift Capacity at 24″ behind Lift Point | 700 lb |
Rear PTO System | Independent |
Rear PTO – RPM | 540 RPM |
PTO HP | 18.8 hp |
Mid PTO – RPM | 2200 RPM |
Capacities
Fuel Tank | 6.7 gal |
Hydraulic System
Implement Hydraulic Flow | 4.6 gal/min |
Total Hydraulic Flow | 6.4 gal/min |
Steering Hydraulic Flow | 1.8 gal/min |
Drive System
Brake Type | Wet Multi Disc |
Transmission Type | Infinite, 2 Range Hydrostatic |
Dimension
Length | 99.3 in |
Width | 45.7 in |
Height | 87.6 in |
Ground Clearance | 6.3 in |
Turning Radius | 8′ 3″ |
Wheelbase | 4′ 7″ |
Front Tire Size | Front Industrial (AG, Turf) 18X8.5-10 |
Rear Tire Size | Rear Industrial (AG, Turf) 26X12-12 |
Loader Attachment
Loader Lift Height | 6′ 0″ |
Lift Capacity at Bucket Pivot | 608 lb |
Bucket Width | 4′ 0″ |
FAQs
What is the horsepower of the Bobcat CT1025?
The Bobcat CT1025 Sub-Compact Tractor has a 24.5 hp 3-cylinder Tier 4 diesel engine, providing sufficient power for various light-duty tasks around small properties.
What type of transmission does the CT1025 have?
This Sub-Compact tractor features a 2-range hydrostatic transmission, allowing for smooth operation and comfortable speed adjustments without clutching.
What is the lift capacity of the CT1025?
The Bobcat CT1025 Sub-Compact Tractor has a lift capacity of 700 lbs at 24 inches behind the lift point, making it suitable for handling various attachments and loads.
What types of attachments can be used with the Bobcat CT1025?
The Bobcat CT1025 is compatible with various attachments, including backhoes, mowers, front-end loaders, and more, making it versatile for different tasks.
What warranty does the Bobcat CT1025 offer?
Bobcat CT1025 tractor comes with a powertrain warranty of 6 years or 2,000 hours, providing peace of mind regarding its durability and reliability.
